WE HAVE MULTI-STAGE VACUUM TECHNOLOGY!










Saturn Series Vacuum Generators
This new series brings together high permormance, smart design, and great pricing to provide unprecedented value.

Features:
• Lightweight (120 grams)*
• Low Profile (25mm high)*
• Push to Connect Air Inlet Port

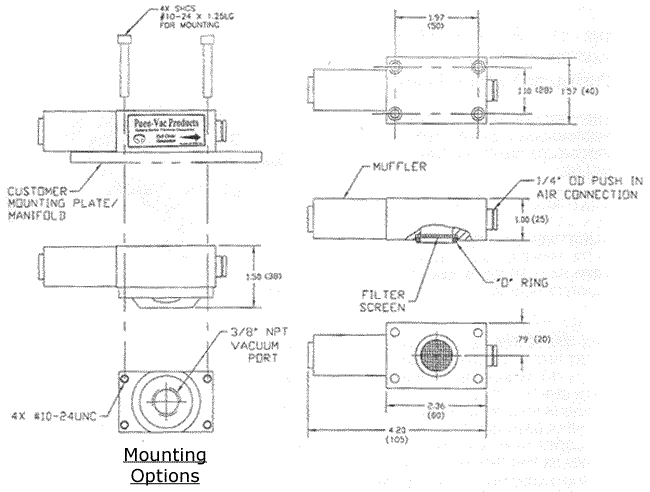

• Manifold Mountable
* excludes base

The SATURN SERIES of generators are small and lightweight. The light but rugged glass reinforced compound construction makes them the smart choice for reciprocating and point-of-application uses due to their low mass and low profile characteristics.

The manifold mounting feature, integral muffler, and removable filter screen provide great value by leaving nothing else to buy and eliminates clumsy looking assemblies. These advantages do not compromise performance. PVI's SATURN SERIES generators, with the full circle generation feature, deliver impressive performance. All models have identical envelope dimensions and are easily interchangeable.



Value Series Vacuum Generator Models:
Part#
Air Consumption
Vacuum Level @60psi
H05 3.1 scfm 27 in-Hg
M05 3.1 scfm 20 in-Hg
H07 4.9 scfm 27 in-Hg
M07 4.9 scfm 20 in-Hg
H08 6.9 scfm 27 in-Hg
M08 6.9 scfm 20 in-Hg
H09 8.7 scfm 27 in-Hg
M09 8.7 scfm 20 in-Hg
